Downtime Entry

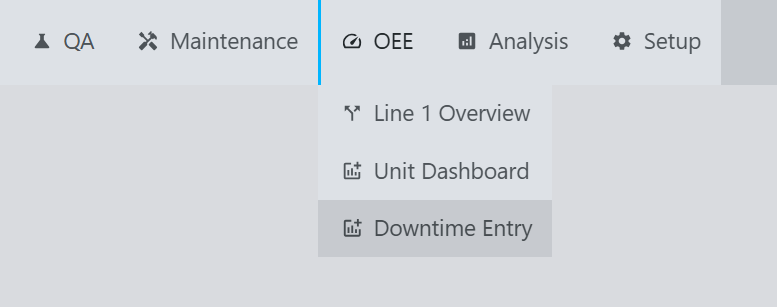

Navigation:

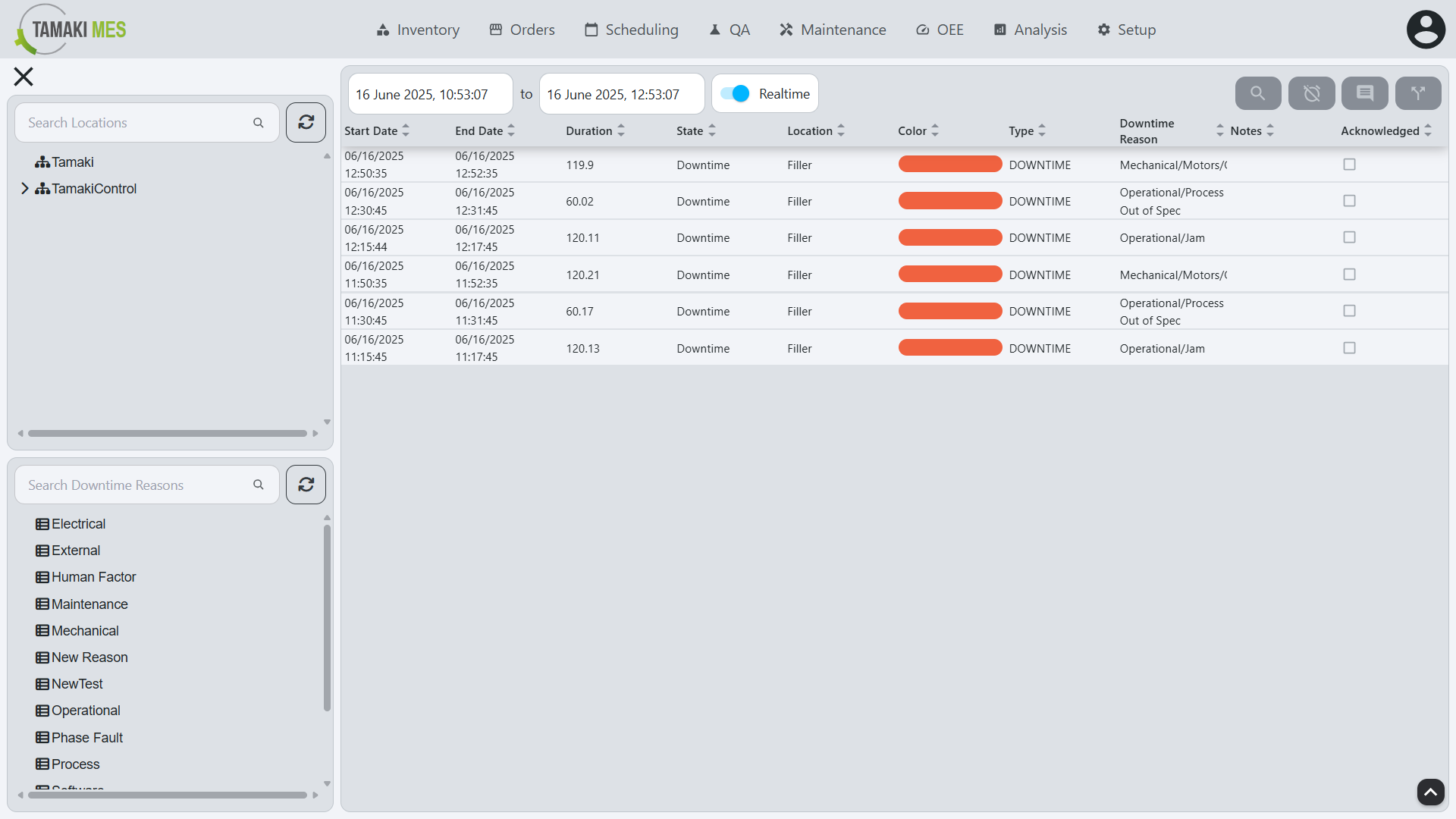

Example:

Description:

• The Downtime Entry screen allows users to acknowledge downtime events and enter details about the downtime, such as the reason for the downtime, the start and end times, and any additional notes. This information is crucial for analyzing downtime trends and improving OEE.

Components:

• Location Tree
• Downtime Reason Tree
• Downtime Event Table

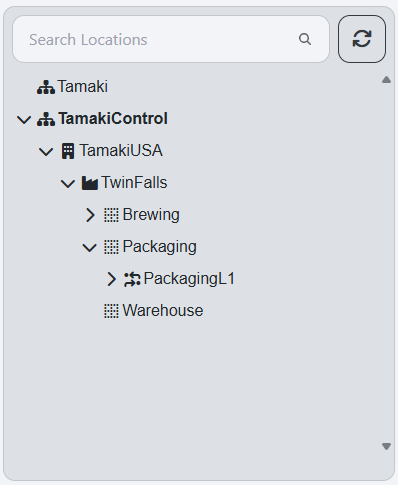

Location Tree

Example:

Description:

• The Location Tree displays the hierarchy of locations within the production line. Users can select a specific location to view and manage downtime events associated with that location. The tree structure allows for easy navigation through different levels of the production line.

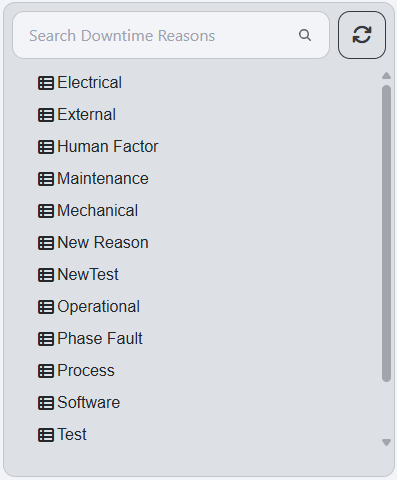

Downtime Reason Tree

Example:

Description:

• The Downtime Reason Tree displays the available downtime reasons that can be selected when entering a downtime event. Users can select a reason to view and manage downtime events associated with that reason. The tree structure allows for easy navigation through different categories of downtime reasons.

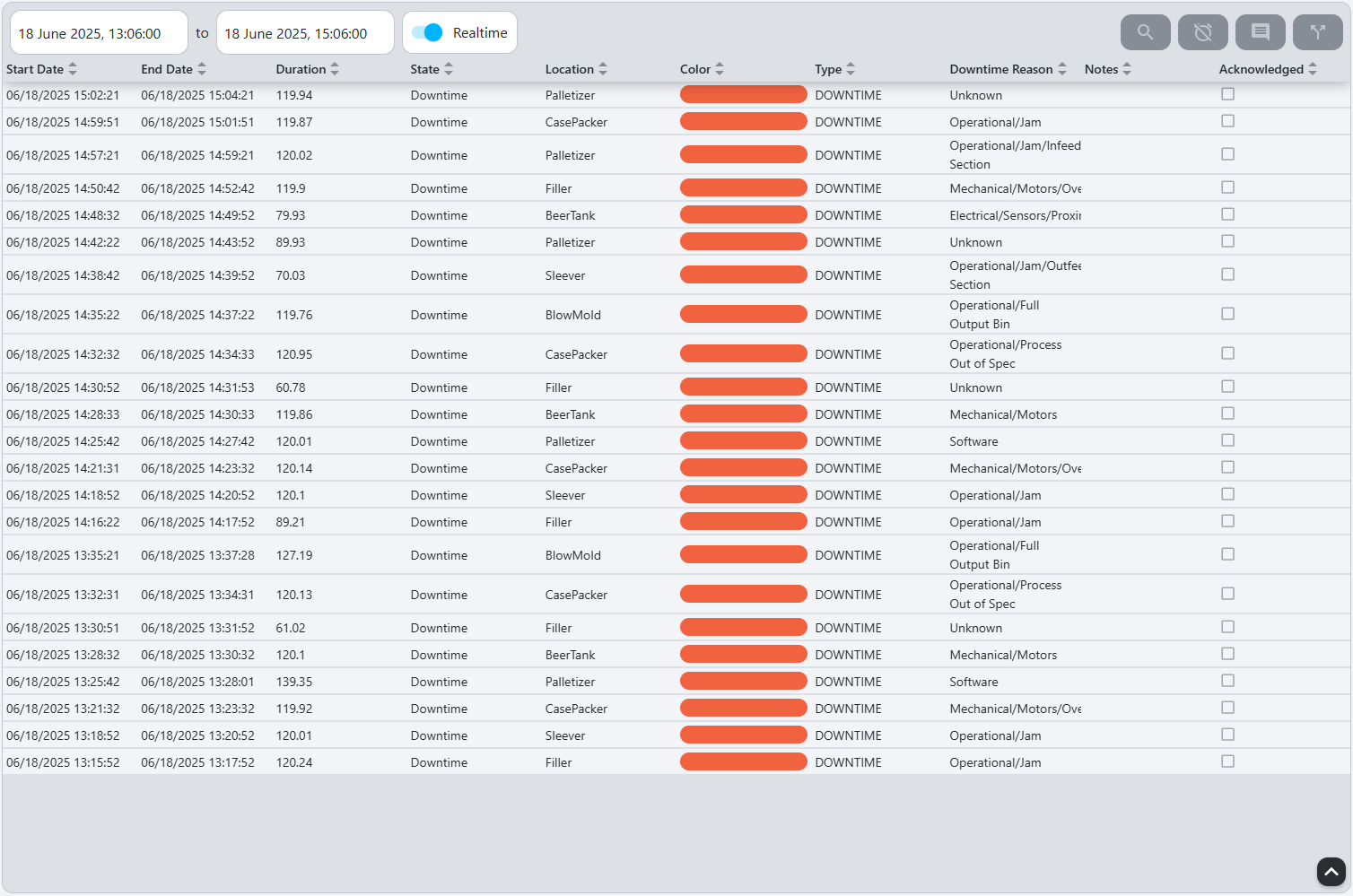

Downtime Event Table

Example:

Description:

• The Downtime Event Table displays a list of downtime events that have been entered for the selected location and downtime reason. Each row in the table represents a specific downtime event.

Components

Table Columns

Column	Description
Start Date	Start date of the downtime event.
End Date	End date of the downtime event.
Duration	Duration of the downtime event.
State	State of the Location during the downtime event.
Location	Location that the downtime event is occuring for.
Color	Color of the state of the downtime event.
Type	Type of the downtime event.
Downtime Reason	Downtime reason associated with the downtime event. see OEE Downtime Reason Model
Notes	Additional notes or comments about the downtime event.
Acknowledged	Boolean of whether the downtime event has been acknowledged.

Table Buttons

View Event Details

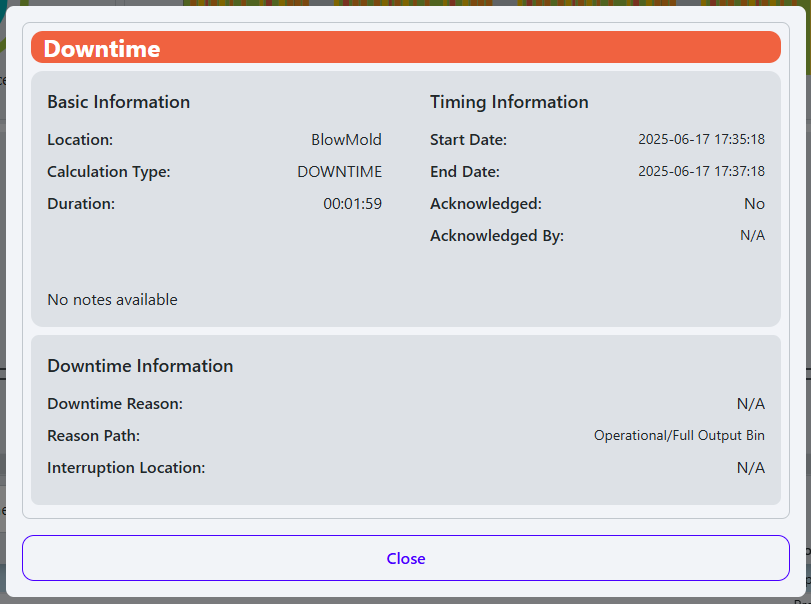

• The View Event Details button, , opens the Downtime Event Details popup:

• Sections:
  • Top Bar State: displays the current State of the downtime event and its corresponding color.
  • Basic and Timing Information: Displays the basic information about the downtime event, including the following:
    • Location
    • Calculation Type
    • Duration
    • Start Date
    • End Date
    • Acknowledged (Yes/No)
    • Acknowledged By
    • Notes
  • Downtime Information: Displays the information about the downtime, including the following:
    • Downtime Reason
    • Reason Path
    • Interruption Location

Acknowledge Event

• The Acknowledge Downtime Event button, , opens the Acknowledge Downtime Event popup:

• Sections:
  • Confirm: Click Confirm to acknowledge the selected downtime event, marking it as reviewed and preventing further edits.

Set Reason Code

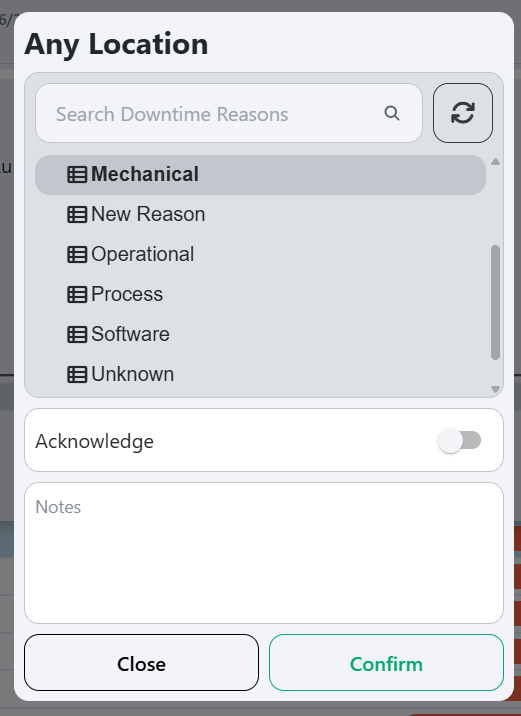

• The Set Downtime Reason button, , opens the downtime reason selection popup:

• Sections:
  • Downtime Reason Selection Tree: Allows users to select a reason for the downtime event from a hierarchical list of predefined reasons.
  • Acknowledge Button: Clicking this button acknowledges the downtime event, marking it as reviewed and preventing further edits.
  • Notes Field: A text field for users to add additional notes or comments related to the downtime event.

Split Downtime Event

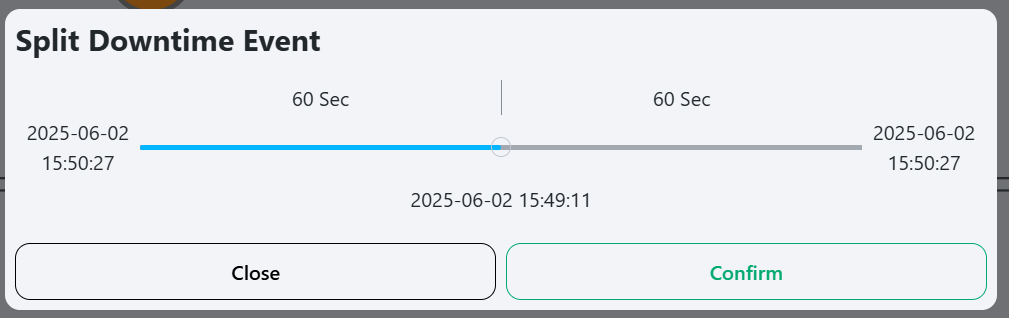

• The Split Downtime Event button, , opens the Split Downtime Event popup:

• Sections:
  • Slider: Select and drag the middle slider to choose the split point for the downtime event.
  • Confirm: Click Confirm to split the selected downtime event into two separate events at the chosen point.
